使用范围/scope of use

12V-7AH、12V-9AH摩托车电池/Motorcycle battery

型号/type

JQMJ-26

加工能力/processing capacity

180只piece/小时hour

电源和功率/power source

AC380V, 50HZ ,2KW

设备重量（含附件）/weight

635kg

外形尺寸（包装）/dimensions

1760mm×860mm×1740mm

工作台面/working desk

1760mm×860mm

主要材质/main material

45#、Q235

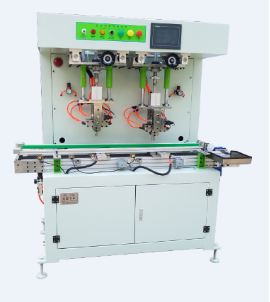

特性描述：采用步进电机控制电池移动和定位，利用气缸推动剪切头对焊件产生扭力，在剪切刀接触铅件时读取位移值，在剪切时间结束时再读取位移值，若前后的位移比较大于设置值则判断剪切开路，机器会报警并将不合格品剔除。/It uses a stepper motor to control the movement and positioning of the battery. Read the displacement value at the time, and then read the displacement value at the end of the cutting time. If the displacement before and after the comparison is greater than the set value, the cutting is judged to be open, and the machine will alarm and reject the unqualified products.

1、设备组成部分：电器控制、气动控制、机架/Equipment components: electrical control, pneumatic control, rack
