使用范围/scope of use

12V-7AH、12V-9AH摩托车电池/Motorcycle battery

型号/type

JQF-26

加工能力/processing capacity

180只piece/小时hour

电源和功率/power source

AC380V, 50HZ ,5KW

设备重量（含附件）/weight

640kg

外形尺寸（包装）/dimensions

1360mm×1000mm×1780mm

工作台面/working desk

1360mm×1000mm

主要材质/main material

45#、Q235

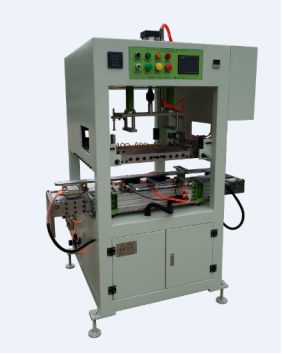

特性描述：JQF-26摩托车全自动双工位热封机是用来完成摩托车用铅酸电池PP材质外壳和盖的热封，双工位，可同时热封两只电池，电池型号12V2.5AH--12V9AH,热封效率180只/小时以上。/JQF-26 motorcycle full-automatic double-station heat sealing machine is used to complete the heat sealing of the PP material shell and cover of the lead-acid battery for motorcycles. The double station can heat seal two batteries at the same time. The battery model is 12V2.5AH- -12V9AH, heat sealing efficiency is more than 180 pieces / hour.

1、设备组成部分：电器控制、气动控制、机架/Equipment components: electrical control, pneumatic control, rack
