使用范围/scope of use

12V-7AH、12V-9AH摩托车电池/Motorcycle battery

型号/type

JQG-26

加工能力/Processing capacity

200-300只piece/每小时hour

电源和功率/power source

AC380V, 50HZ ,2KW

设备重量（含附件）/weight

373kg

外形尺寸（包装）dimensions

1360mm×860mm×1730mm

工作台面/working desk

1360*860（mm）

颜色/color

绿/green

主要材质/main material

45#、Q235

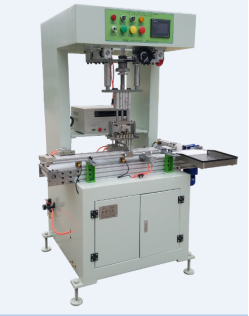

特性描述/Feature Description：对摩托车铅酸电池进行短路检测的设备，检查蓄电池极群入槽后，极板正负极是否短路。电压0-5KV可调/a device for short-circuit detection of motorcycle lead-acid batteries, after checking the battery pole group into the slot, the positive and negative poles of the polar plate are short-circuited. The voltage is adjustable from 0-5KV.
